vdc-48

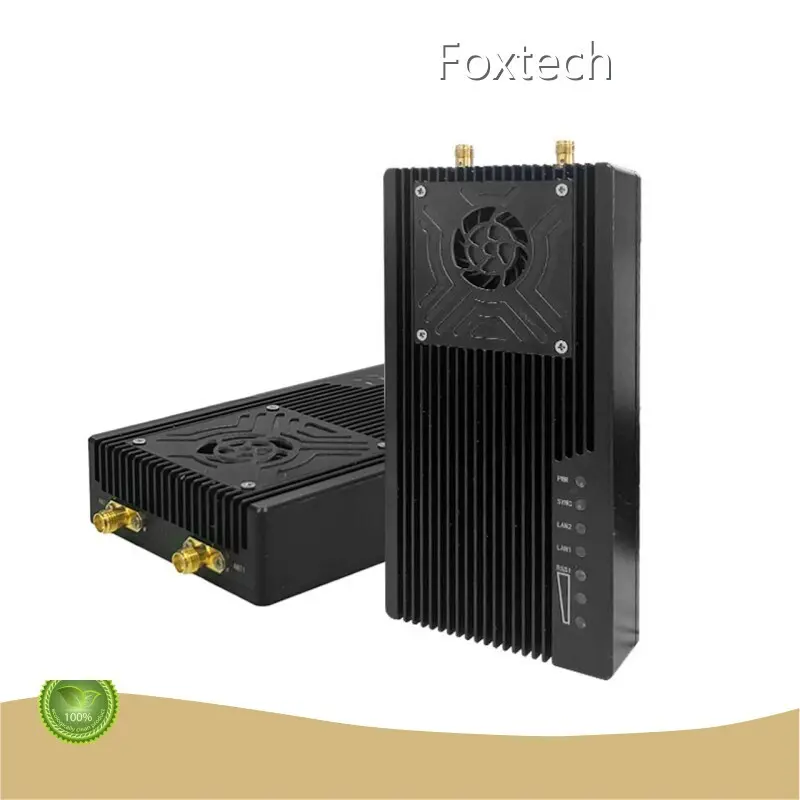

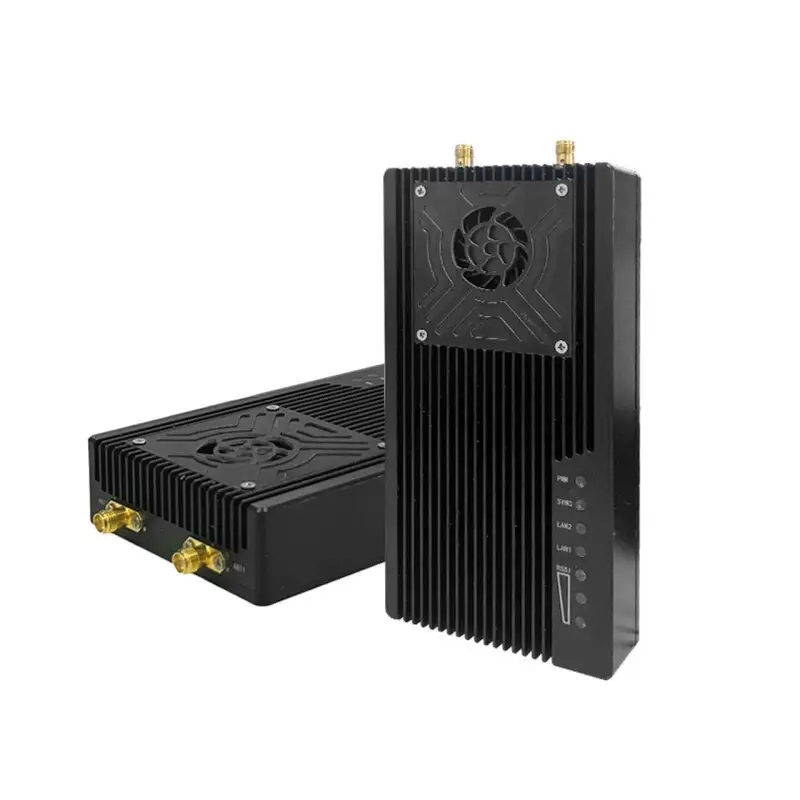

The VDC-48 is a high-performance TDD bi-directional video/data transmission system engineered for long-distance, low-latency wireless communication.
Specification

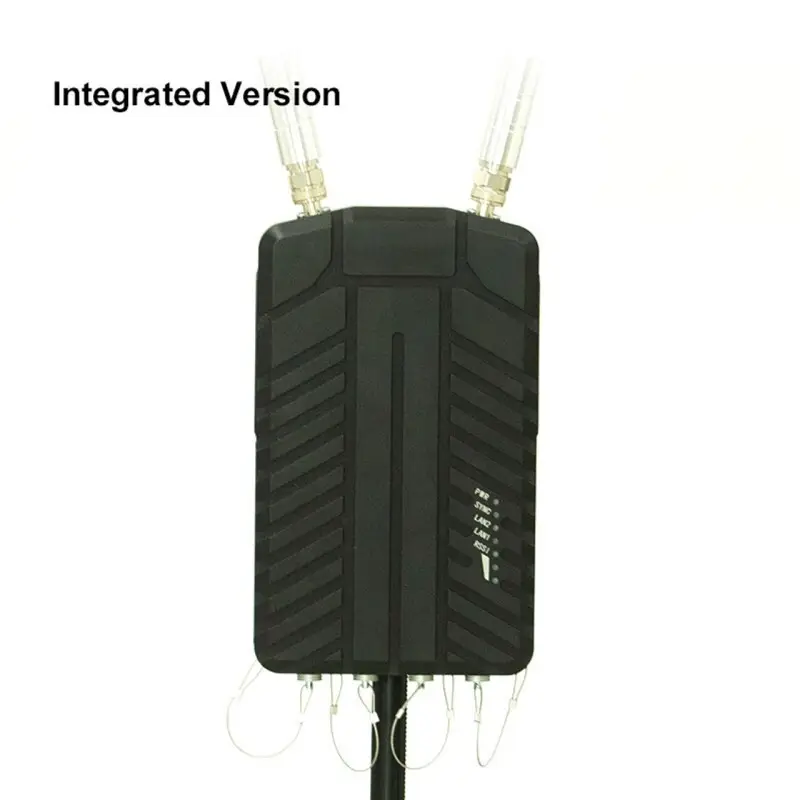

| Parameter | Standard Version | Integrated Version | Integrated Version II |
| Working Frequency | 1350~1470 MHz | 1350~1470 MHz | 1350~1470 MHz |
| Radio Frequency | 2T2R | 2T2R | 2T2R |
| Transmission Power | 37 dBm (5W) | 37 dBm (5W) | 37 dBm (5W) |
| Transmission Distance | Air-to-ground 48 km | Air-to-ground 48 km | Air-to-ground 48 km |
| Channel Bandwidth | 10 MHz | 10 MHz | 10 MHz |
| Modulation Mode | QPSK / 16QAM | QPSK / 16QAM | QPSK / 16QAM |
| Speed | 16.4 Mbps @ 16QAM 3/4 | 16.4 Mbps @ 16QAM 3/4 | 16.4 Mbps @ 16QAM 3/4 |
| Communication Encryption | AES256 | AES256 | AES256 |
| Transmission Delay | ≤10 ms | ≤10 ms | ≤10 ms |
| Antenna Interface | SMA *2 | N Connector *2 | N Connector *1 |
| Power Interface | XT30PW-M | Lemo Line | Lemo Line |
| Equipment Interface | Ethernet port *2 | WIFI *1 | WIFI *1 |
| TTL/RS232 *2 | 100Mb Ethernet *1 | 100Mb Ethernet *1 | |
| RS422 | TTL/RS232 *2 | TTL/RS232 *2 | |
| SBUS *2, TTL *1 | RS422 *1, SBUS *2 | RS422 *1, SBUS *2 | |
| Overall Power Consumption | ≤40W @ 4Mbps (Air)≤12W @ 1Mbps (Ground) | ≤40W @ 4Mbps(Air)≤15W@1Mbps (Ground) | ≤40W @ 4Mbps (Air)≤15W @ 1Mbps (Ground) |
| Dimension | 153 * 77 * 25 mm | 250 * 150 * 34.4 mm | 259 * 259 * 76 mm |
| Weight | 370 g | 1.5 kg | 1.5 kg |
| Working Voltage | Typical value +24V @ 2A | DC9~36V | DC9~36V |
| Working Temperature | -40℃ ~ +75℃ | -40℃ ~ +65℃ | -40℃ ~ +65℃ |
Product Introduction
With a maximum transmission range of up to 48 kilometers, the VDC-48 ensures stable, high-quality connectivity even in complex environments. It integrates a suite of intelligent features including real-time interference detection, automatic retransmission, adaptive frequency selection (with 12 selectable frequency points), and adaptive bitrate control, which dynamically adjust to changing signal conditions.
These capabilities significantly improve anti-interference performance and multipath resistance, maintaining high reliability and transmission stability in challenging field operations.
Product features
The system also incorporates automatic power control, optimizing output based on transmission conditions to reduce energy consumption and mitigate RF noise in shared spectrum environments. With a working temperature range of -40°C to +75°C, the VDC-48 is built to perform in extreme climates, making it suitable for both harsh industrial deployments and mobile outdoor missions.
Compact yet powerful, the VDC-48 is compatible with a range of airborne or ground-based platforms and supports various network configurations through its flexible interface design. Whether deployed for live video backhaul, telemetry exchange, or command/control data streams, it provides a robust, bi-directional communication backbone that ensures mission success across multiple domains.
Product Details
Frequency Point Selection: Choose between fixed and adaptive options, offering 12 selectable frequency channels for precise control.
Serial Mapping: Configure the mapping between remote and local serial ports as needed.
Standby IP: Alternate IP addresses can be set for flexible networking.
