Product details of the drone vendors


Product Description

Foxtech drone vendors captures the attention of customers with its functional and aesthetic design. This product conforms to the international market strict quality standard. FOXTECH HOBBY CO.,LIMITED spares no effort to pursue better solutions that suit its customers' needs.

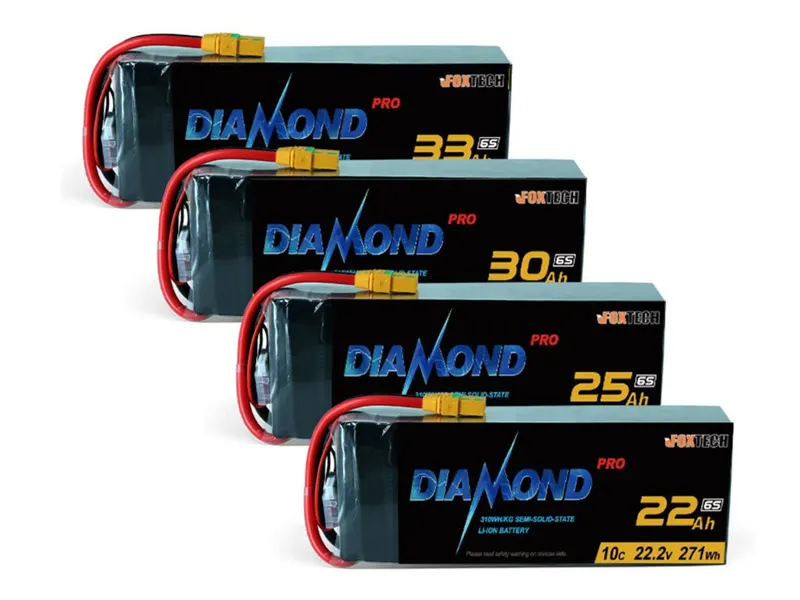

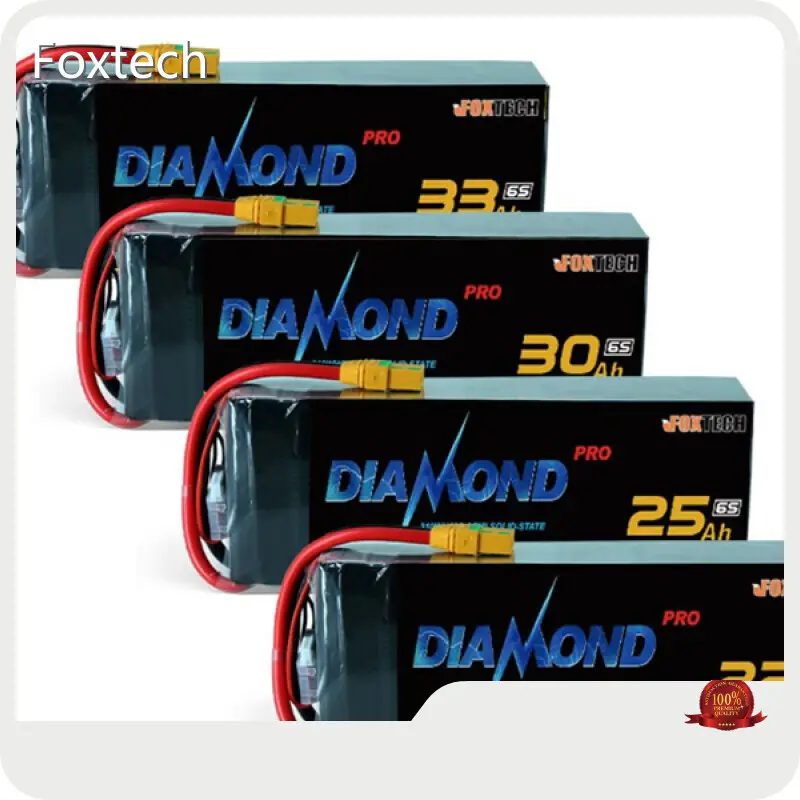

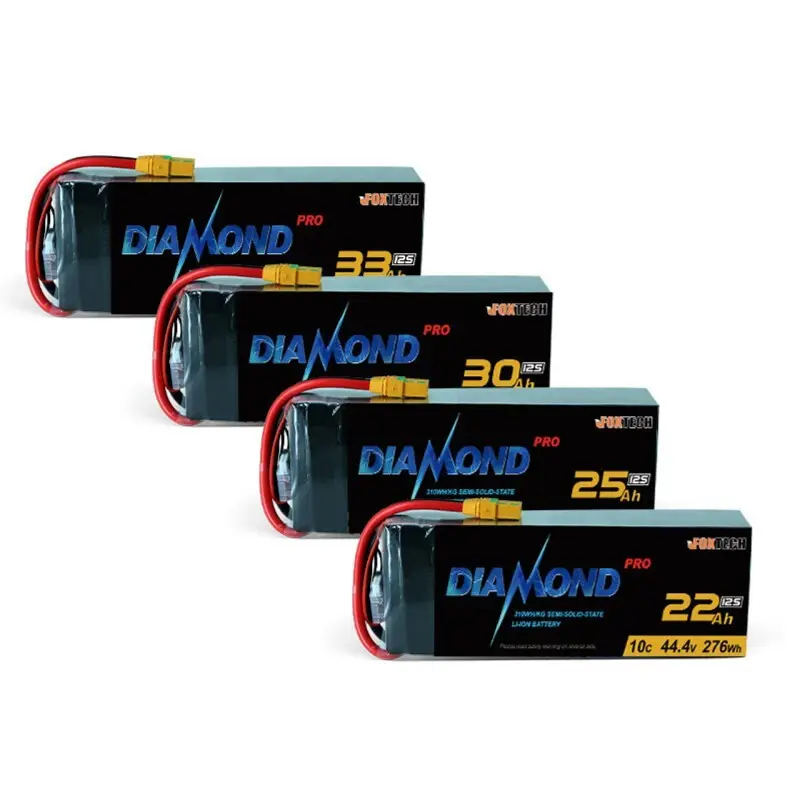

Diamond-pro-310

The Diamond Pro semi-solid-state battery delivers a high energy density of 310Wh/kg.

undefined

Specification

Specification(310Wh/kg Series)
Capacity Cell Voltage Energy Energy Density Discharge Rate Continuous Rate Charging Rate Dimensions Weight
(Ah) Configuration (V) (Wh) (Wh/kg)  (C)  (C) (C) (mm) (kg)
22Ah 6S 1P 22.2 488.4 271.3 10 2月3日 0.5-2 200*75*59 1.8
25Ah 6S 1P 22.2 555 287.5 10 2月3日 0.5-2 200*75*66 1.93
30Ah 6S 1P 22.2 666 290.8 10 2月3日 0.5-2 215*88*59 2.29
33Ah 6S 1P 22.2 732.6 296.5 10 2月3日 0.5-2 215*88*66 2.47
22Ah 12S 1P 44.4 976.8 275.9 10 2月3日 0.5-2 200*75*119 3.54
25Ah 12S 1P 44.4 1110 288.3 10 2月3日 0.5-2 200*74*132 3.85
30Ah 12S 1P 44.4 1332 293.3 10 2月3日 0.5-2 215*88*119 4.54
33Ah 12S 1P 44.4 1465.2 297.2 10 2月3日 0.5-2 215*88*132 4.93
22Ah 14S 1P 51.8 1139.6 276.6 10 2月3日 0.5-2 200*75*138 4.12
25Ah 14S 1P 51.8 1295 288.4 10 2月3日 0.5-2 200*75*153 4.49
30Ah 14S 1P 51.8 1554 295.4 10 2月3日 0.5-2 215*88*139 5.26
33Ah 14S 1P 51.8 1709.4 297.2 10 2月3日 0.5-2 215*88*152 5.75

Product Introduction

Thanks to its lightweight structure and high power-to-weight ratio, this UAV batteries enable longer operation time or heavier payload without compromising efficiency.

Capable of withstanding over 500 cycles, it minimizes replacement frequency and cuts maintenance costs in the long run.

主图1 (29)
1 (22)

Application Scenario

Even in low temperatures down to -20°C, the UAV drone battery maintains solid performance, making it dependable in harsh weather conditions.

Compatible with a wide range of unmanned platforms—multi-rotors, VTOLs, fixed-wings, helicopters, and ground robots.

Product Details

图片4 (7)
图片4 (7)
Engineered for demanding applications, the Diamond Pro semi-solid-state Li-ion battery delivers excellent energy density up to 310Wh/kg. It stands out for its superior stability and safety features, while also offering a longer lifespan—making it a reliable choice for critical power needs.
图片5 (8)
图片5 (8)
Compared to conventional battery types, Diamond Pro’s semi-solid-state chemistry stores more energy relative to weight. This not only boosts drone and UGV flight durations but also supports increased payload loads by enhancing overall power-to-weight efficiency.
1 (22)
1 (22)
Performs consistently in freezing temperatures, maintaining reliable output even when regular batteries tend to underperform—suitable for harsh environments down to -20°C.
图片7 (12)
图片7 (12)
Equipped with a standard XT90S power interface, and compatible with other plug types including AS150, QS8, and QS9L. The XH2.54 balancing port ensures stable current management across all cells.
图片9 (11)
图片9 (11)
Certified to meet global compliance standards, the battery includes UN38.3 and MSDS approvals, ensuring safety and legal reliability for international logistics and usage scenarios.
图片8 (14)
图片8 (14)
Applications
