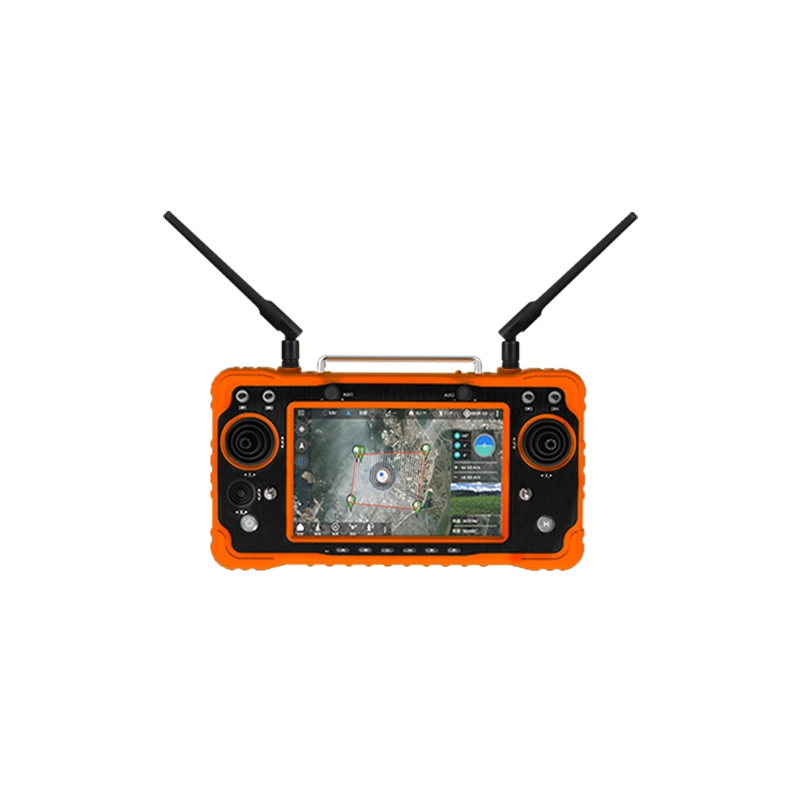

Portable Ground Control Station 10/30km Range 7” FHD Screen MX16/MX16 Pro

MX16 is a compact and economical ground control station that combines video transmission, data communication, RC, and Android system in one unit. Designed for long-range and stable signal transmission, it delivers low latency and strong anti-interference capabilities. The series includes two models—MX16 and MX16 Pro—with tested transmission ranges of 10km and 30km respectively in open, interference-free environments.

Featuring a 7-inch FHD high-brightness touchscreen with a resolution of 1920×1200 and a peak brightness of 1800nit, the MX16 ensures visibility even under direct sunlight. Built on an Android platform, it is fully compatible with leading ground station software such as QGC, supporting real-time flight monitoring, route planning, video suspension, and RTSP video streaming over wireless networks.

The MX16 series offers excellent expandability with multiple interfaces, including HDMI, RJ45 (offering enhanced performance over HDMI), SBUS, PPM, sensor interface, UART, and USB. A built-in 1080P MIPI camera further enhances its multimedia capabilities. Its rugged design features a dust-proof and waterproof body, switches, and external ports, enabling stable operation in harsh field conditions.

Powered by a built-in 20000mAh lithium-ion battery, MX16 supports 18W fast charging and offers up to 8 hours of continuous use. The system is compatible with various UAV platforms including AYK-350 VTOL, AYK-320 VTOL, Great Shark 330 VTOL, BABY SHARK 260 VTOL, and RHEA 160. It is ideal for applications such as powerline inspection, public safety patrol, and search & rescue operations.
