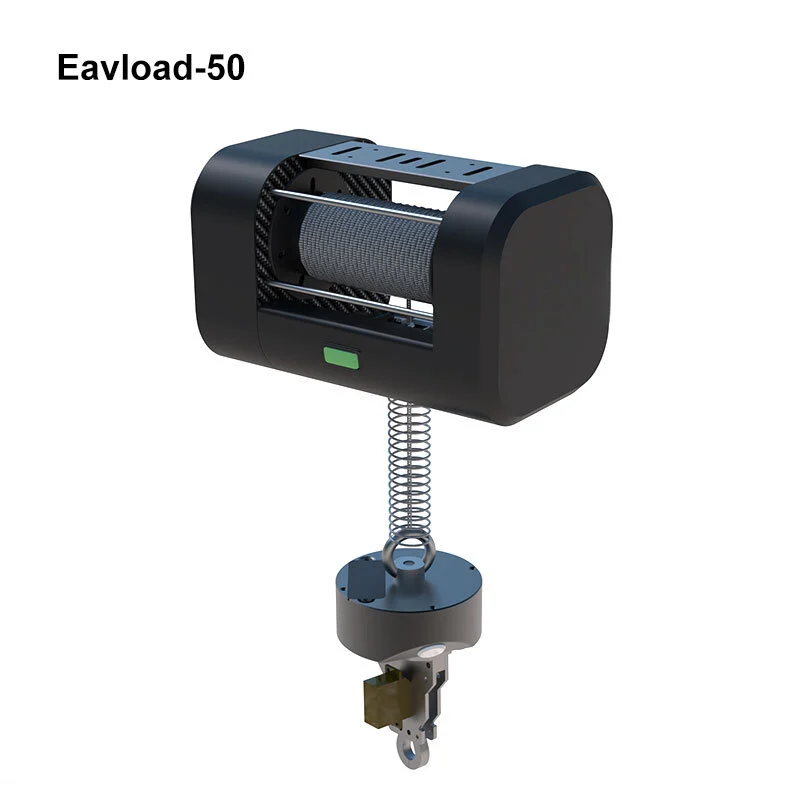

Heavy-Duty 50KG Payload Drone Delivery Winch DJI Compatible Eayload-50
The Eayload-50 is a heavy-duty drone winch built for demanding aerial delivery missions. As part of the Eayload Series alongside the Eayload-10 and Eayload-150, it delivers robust performance tailored for high-payload platforms such as DJI Agras T60, T50, T40, and other large industrial multirotor drones. It supports integration with third-party flight systems and ground stations and can also operate independently using its dedicated controller.
Parameter: Eayload-50
Dimensions: 308.5 × 184 × 187 mm (excluding hook)
Body Weight: 5.1 kg (excluding weights and unhooker)
Mechanical Auto-Unhooker: 0.74 kg
Electrical Unhooker: 0.6 kg
Max Lifting Weight: 50 kg
Cable Length: 30 m
Power Supply Voltage: High Voltage 44V–52V
Max Retracting & Releasing Speed: 0.6 m/s
One-Click Cargo Release: Supports
One-Click Rope Cutting: Supports
One-Click Drop: Supports
Power-Off Brake: Supports
Tension Monitoring: Supports
Sway Detection: Supports
Overload Protection System: Supports
Speed Adjustment: Supports
Anti-Tangle Design: Supports
The Eayload-50 is a heavy-duty drone winch built for demanding aerial delivery missions. As part of the Eayload Series alongside the Eayload-10 and Eayload-150, it delivers robust performance tailored for high-payload platforms such as DJI Agras T60, T50, T40, and other large industrial multirotor drones. It supports integration with third-party flight systems and ground stations and can also operate independently using its dedicated controller.
Designed to lift up to 50 kg with precise motor control, the Eayload-50 features a 30-meter cable and a max retraction/release speed of 0.6 m/s. Standard functions include one-click cargo release and rope cutting, anti-tangle cable design, ground-triggered auto unhooking, and adaptive speed adjustment. Real-time load alerts further enhance operational safety.
Exclusive to the electric release version are advanced safety mechanisms such as power-off brake, tension monitoring, and sway detection. These features allow for greater control and reliability during flight, especially in windy or dynamic environments.
Engineered for mission-critical logistics, powerline maintenance, and emergency response, the Eayload-50 ensures stability, intelligence, and efficiency for high-capacity drone delivery workflows. Multiple configurations—Eayload-10, 50, and 150—are available to match different payload and operational requirements.
