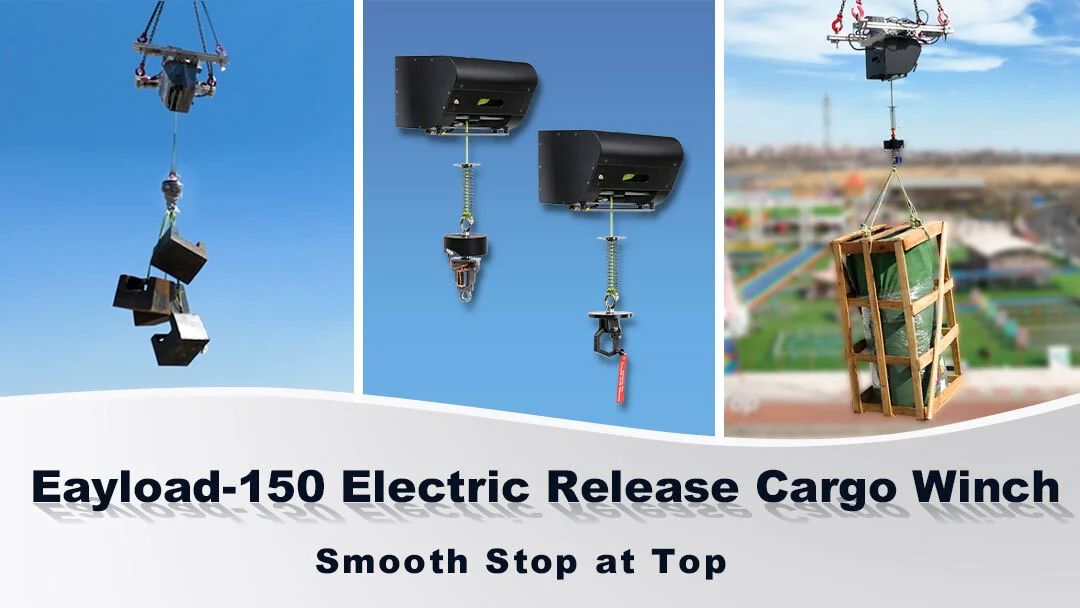

Heavy-Lift Drone Cargo Winch 150kg Capacity 30m Cable Electric Release Eayload-150
Eayload-150 is a high-capacity UAV winch system engineered for use with heavy-lift drones and helicopters, supporting up to 150 kg of payload. It’s part of the Eayload Series, which includes three models—Eayload-10, Eayload-50, and Eayload-150—covering a wide range of drone cargo delivery needs from light to heavy duty. Each model is tailored for specific mission profiles and integrates seamlessly with third-party systems, offering flexible deployment across various platforms.
Parameter: Eayload-150
Winch Dimensions: 326 × 243 × 223 mm
Winch Weight: 14 kg
Mechanical Release + Counterweight: 1418 g
Payload Release Module + Electric Release: 1880 g
Rope Length: 30 m
Maximum Payload Capacity: 150 kg
Retract/Release Speed: 0.1–0.28 m/s
Power Source: Battery-powered, does not support DC power supply
Operating Voltage: 44–52 V
Full Load Rated Power: 600 W
Hovering Power Consumption: Less than 20 W
SBUS: Not supported
Remote Controller: Not supported
PWM: Not supported
RS232/RS422: Standard, compatible with ground station development
CAN Communication: Optional, available for ground station integration
Eayload-150 is a high-capacity UAV winch system engineered for use with heavy-lift drones and helicopters, supporting up to 150 kg of payload. It’s part of the Eayload Series, which includes three models—Eayload-10, Eayload-50, and Eayload-150—covering a wide range of drone cargo delivery needs from light to heavy duty. Each model is tailored for specific mission profiles and integrates seamlessly with third-party systems, offering flexible deployment across various platforms.
Eayload-150 features an advanced Electric Release System (electric hook version only) for mid-air cargo deployment, along with an Emergency Rope Cut-Off that enables immediate disconnection in critical scenarios. Its intelligent Power Failure Braking system ensures cargo security by instantly locking the motor in case of power loss. With Real-Time Tension Monitoring and Swing Detection, the system continuously analyzes cable load and motion for enhanced flight stability.
Additional capabilities include an Anti-Twist Design that prevents rope entanglement, Automatic Rope Management for 30-meter cable control, and One-Touch Cargo Release & Lift for simplified operation. It also offers Auto Hook Release upon Ground Contact (electric version), Upper & Lower Limit Stops, and a Safe Stop at Top to prevent impact damage. Equipped with Night Navigation Lights, Eayload-150 is mission-ready even in low-light conditions.
Built for maximum reliability and easy integration, Eayload-150 supports RS232/RS422 communication protocols and optional CAN interfaces for compatibility with a wide range of industrial drone platforms and ground control systems. From emergency logistics and industrial supply drops to long-distance aerial transport, the Eayload Series is the dependable solution for intelligent drone-based delivery.
