Product details of the industrial collaborative robots


Quick Overview

Foxtech industrial collaborative robots is made of the finest materials that has passed the international tests. With the capacity to bear long time use, the product is highly durable. It is becoming increasingly widely applied in the fields.


Product Description

Foxtech's industrial collaborative robots is produced in strict accordance with standards. We make ensure that the products have more advantages over similar products in the following aspects.

MP01

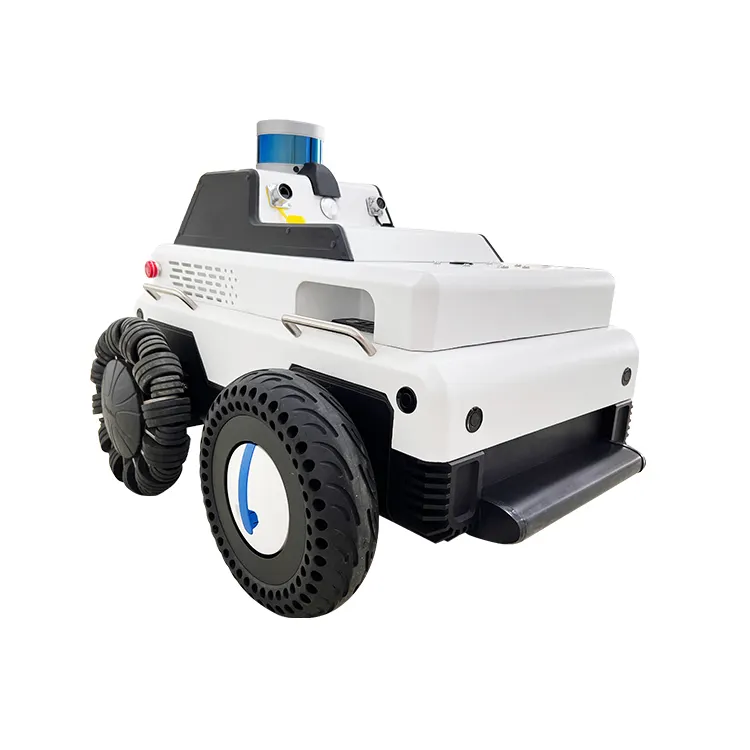

MP01 UGV Wheeled Inspection Patrol Robot Chassis is a compact, high-performance unmanned ground vehicle platform designed for inspection, security, and multi-functional autonomous operations.

undefined

Specification

External dimensions 860*600*540MM (LWH) Function mode follow/remote control/manual switch
Platform dimensions 700*540*405MM (LWH) Charging time 4 hours (with a 5A charger)
Remote control distance ≤30M Brake mode Electromagnetic braking
Turning radius turning in place Maximum load ≤100KG
Tire type 12-inch inflatable tire Follow distance 1-7M (adjustable)
Charging method Manual charging Acceleration 0.5m/s²
Movement mode Dual-wheel different drive Obstacle detection height 34CM
Weight 35KG Battery specifications 24V20AH lithium battery
Climbing ability ≤15° (full load) Endurance mileage 30 kilometers
Maximum speed ≤5.4KM/H (adjustable) Anti-Collision method 360° laser
Obstacle height/seam width 5CM

Product Introduction

Developers can quickly mount sensors, communication devices, cameras, and other equipment. MP01 supports both remote parallel driving and autonomous navigation modes, offering flexibility in operation.

主图4 (24)
主图6 (8)

Product Description

Its ROS-compatible communication interface enables seamless integration with intelligent scheduling or control systems, facilitating rapid deployment in smart city or industrial settings.

It integrates a range of functional modules including emergency stop switches, power interfaces, ultrasonic sensors, communication ports, and status-indicating lights. This smart UGV chassis is ideal for applications such as logistics delivery, park patrolling, railway inspection, unmanned surveillance, and more.

Product Details

图片8 (23)
MP01 Wheeled Navigation Robot
Four-wheel drive UGV with trackless navigation, integrated safety, power, control & comms units. Ready for long-term, flexible deployment.
图片9 (18)
All Terrain UGV
Spin in Place, Flexible Operation 150kg Payload
图片10 (24)
Optional Automatic Charging Pile
Meet the continuous operation needs of robots
图片11 (18)
Robot chassis can be provided separately
图片12 (23)
Flip Structure
Easy internal maintenance and battery replacement
图片13 (16)
3D LiDAR
Measuring Distance: 150 meters Frame Rate:5Hz/10Hz/20Hz
图片14 (11)
Support multi-function module expansion
图片15 (13)
Multiple Sensors to Ensure Safety
