Foxtech Provides Industrial Drone Solutions & UAV Payload Systems.
Quality Uas Solutions for Agricultural Plant Protection
Product details of the uas solutions
Quick Detail
Foxtech uas solutions is developed as per the specifications laid by customers. The offered products are in complete compliance with quality industry standards. FOXTECH HOBBY CO.,LIMITED has established several highly specialized industrial market divisions dedicated to target markets.
Product Information
With a focus on product quality, Foxtech strives for quality excellence in the production of uas solutions.
AYK 350 VTOL Industrial Drone Solution
One of the standout features of the AYK 350 is its dual-GPS differential design, which enhances positioning accuracy, flight stability, and anti-interference capabilities.
Specification
| Version | AYK-350 | Max Cruising Speed | 28 m/s |
| Type | VTOL | Stall Speed | 17 m/s |
| Color | White | Max Flight Altitude | 3000 m |

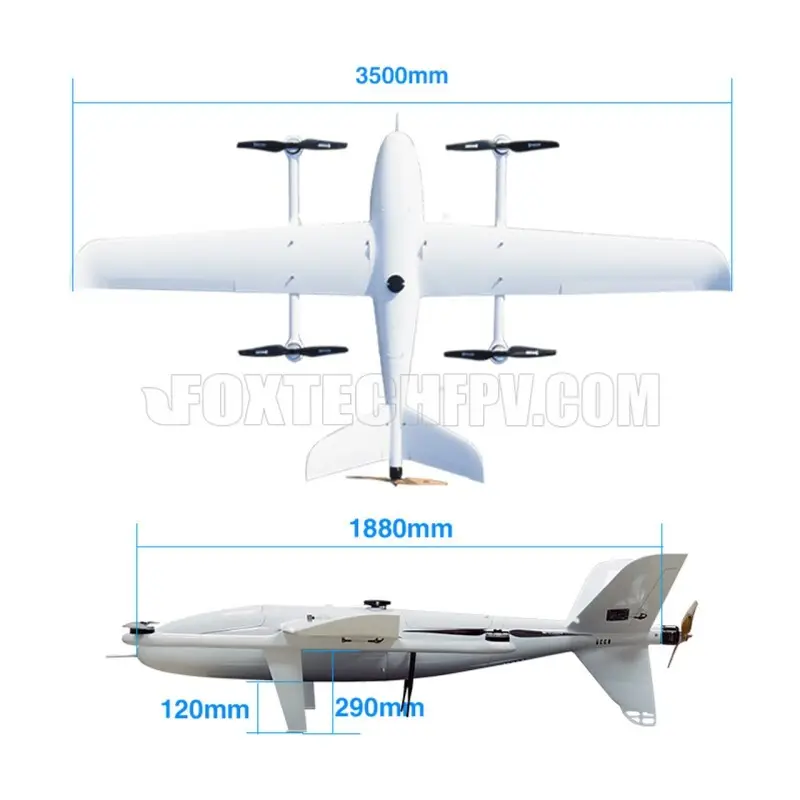

| Wingspan | 3500 mm | Max Takeoff Altitude | 2000 m |
| Length | 1880 mm | Wind Resistance | 10.8 m/s-13.8 m/s (fixedwing); |
| Material | Carbon Fiber | 5.5 m/s-7.9 m/s (vtol) | |
| Basic Empty Weight | 18.2 kg (no battery) | Working Voltage | 48 V |
| Max Takeoff Weight | 35 kg | Working Temperature | -20℃~45℃ |
| Suggested Cruising Speed | 22 m/s | Carrying Case | 1670*590*540 mm |
Product Introduction
Engineered with a robust carbon fiber airframe and a generous 3.5-meter wingspan, the AYK 350 offers exceptional structural strength, payload versatility, and flight performance in a wide range of environments.
One of the standout features of the AYK 350 is its dual-GPS differential design, which enhances positioning accuracy, flight stability, and anti-interference capabilities. With no need for compass calibration, the aircraft is especially suited for field operations with strong magnetic interference.
Application Scenario
The latest DLVR airspeed measurement system ensures accurate velocity data even in fluctuating temperatures, contributing to more reliable and consistent flight control.
The AYK 350 adopts a full quick-mount modular design, allowing rapid disassembly of wings, arms, and the tail for fast deployment and compact storage.
Its detachable payload cabin supports a wide range of equipment, including heavy gimbals, LiDAR systems, and multi-sensor mapping devices, providing high value across multiple industries.
Product Introduction
The aircraft also supports both manned and unmanned cargo pickup modes, allowing autonomous delivery with altitude-controlled drop or precise ground land-and-release functions.
ModeⅠ(Unmanned):
A. with the pre-set program, AYK 350 will carry the package to the destination; B. drop the package after descending to the desirable height; C. return.
ModeⅡ(Unmanned):
A. carry the package to the destination; B. land and disarm; C. drop the cargo; D. automatically take off after 10s (the time can be set).
Product Details
- 1x AYK-350 VTOL
- 1x High Efficiency Tail Motor
- 1x Tail ESC
- 1x 24 inch Propeller for Tail Motor
- 1x 24 inch Spare Propeller for Tail Motor(for free)
- 4x Servo
- 4x Motor for VTOL Mode
- 4x ESC for VTOL Mode
- 2x (pairs) 26 inch Propellers for VTOL Mode
- 1x (pair) 26 inch Spare Propellers for VTOL Mode(for free)
- 2x UBEC
- 2x Power Monitor Module
- 1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
- (or X7 Pro Flight Controller with NEO 3 Pro GNSS)
- 1x DA16S+ Radio Controller
- 1x Carrying Case
- 1x Assembling, tuned and Flying Test Service
- 1x AYK-350 VTOL
- 1x Cargo Delivery Cabin
- 1x High Efficiency Tail Motor
- 1x Tail ESC
- 1x 24 inch Propeller for Tail Motor
- 1x 24 inch Spare Propeller for Tail Motor(for free)
- 4x Servo
- 4x Motor for VTOL Mode
- 4x ESC for VTOL Mode
- 2x (pairs) 26 inch Propellers for VTOL Mode
- 1x (pair) 26 inch Spare Propellers for VTOL Mode(for free)
- 2x UBEC
- 2x Power Monitor Module
- 1x Pixhawk Cube Orange Standard Set (or X7 Pro Flight Controller)
- 2x C-RTK 9Ps High Precision Positioning Module Pixhawk Sky End
- 1x DA16S+ Radio Controller
- 1x 100m Single Point Lidar
- 1x Carrying Case
- 1x Assembling, tuned and Flying Test Service
- 1x AYK-350 VTOL
- 1x High Efficiency Tail Motor
- 1x Tail ESC
- 1x 24 inch Propeller for Tail Motor
- 1x 24 inch Spare Propeller for Tail Motor(for free)
- 4x Servo
- 4x Motor for VTOL Mode
- 4x ESC for VTOL Mode
- 2x (pairs) 26 inch Propellers for VTOL Mode
- 1x (pair) 26 inch Spare Propellers for VTOL Mode(for free)|
- 2x UBEC
- 2x Power Monitor Module
- 1x Pixhawk Cube Orange Standard Set (or X7 Pro Flight Controller)
- 2x C-RTK 9Ps High Precision Positioning Module Pixhawk Sky End
- 1x DA16S+ Radio Controller
- 1x Carrying Case
- 1x Assembling, tuned and Flying Test Service
- 1x Diamond 12S 66000mAh HV
Company Advantages
FOXTECH HOBBY CO.,LIMITED is a modern and market-oriented company. We are mainly engaged in the business of UAV and Related Technologies. We have built up a sound service system, including pre-sale, in-sale and after-sale services of high quality. Therefore, customers' needs would be satisfied and experience would also be promoted. We are sincerely looking forward to establishing a long-term cooperation with all customers!
