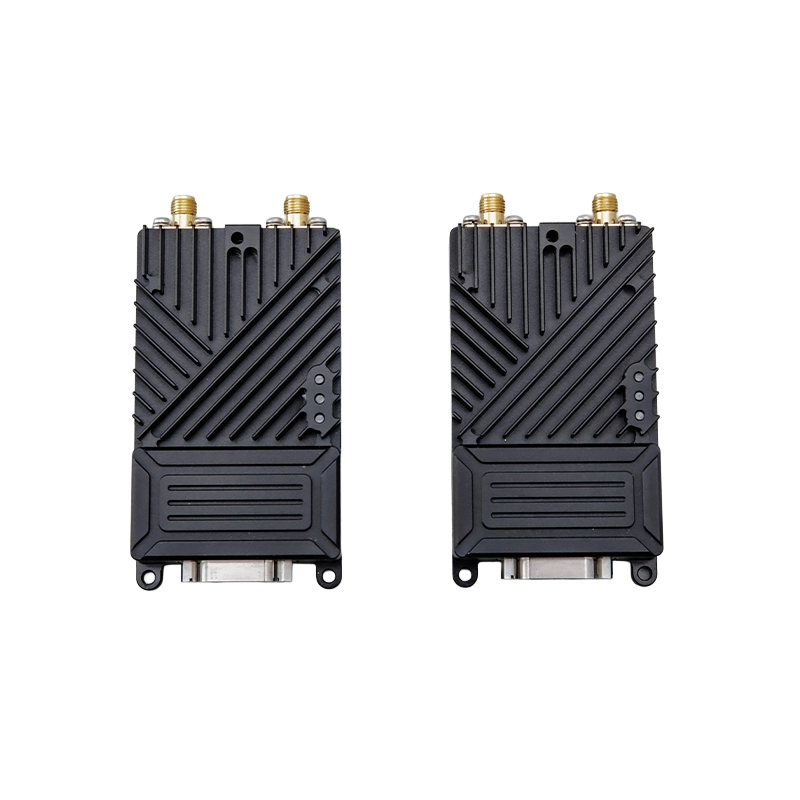

VDLINK COFDM 30km Long-Range Video & Data Transmission System | Anti-Jamming Wireless Data Link for UAV & Industrial Applications

The VDLINK COFDM Series Frequency-Hopping Anti-Interference Data Link is a high-performance wireless video and data transmission system designed for reliable communication in complex and interference-heavy environments. Operating Frequency: 1350–1450 MHz (Default)，Custom Frequency Range: 600 MHz – 2.7 GHz (Customizable).

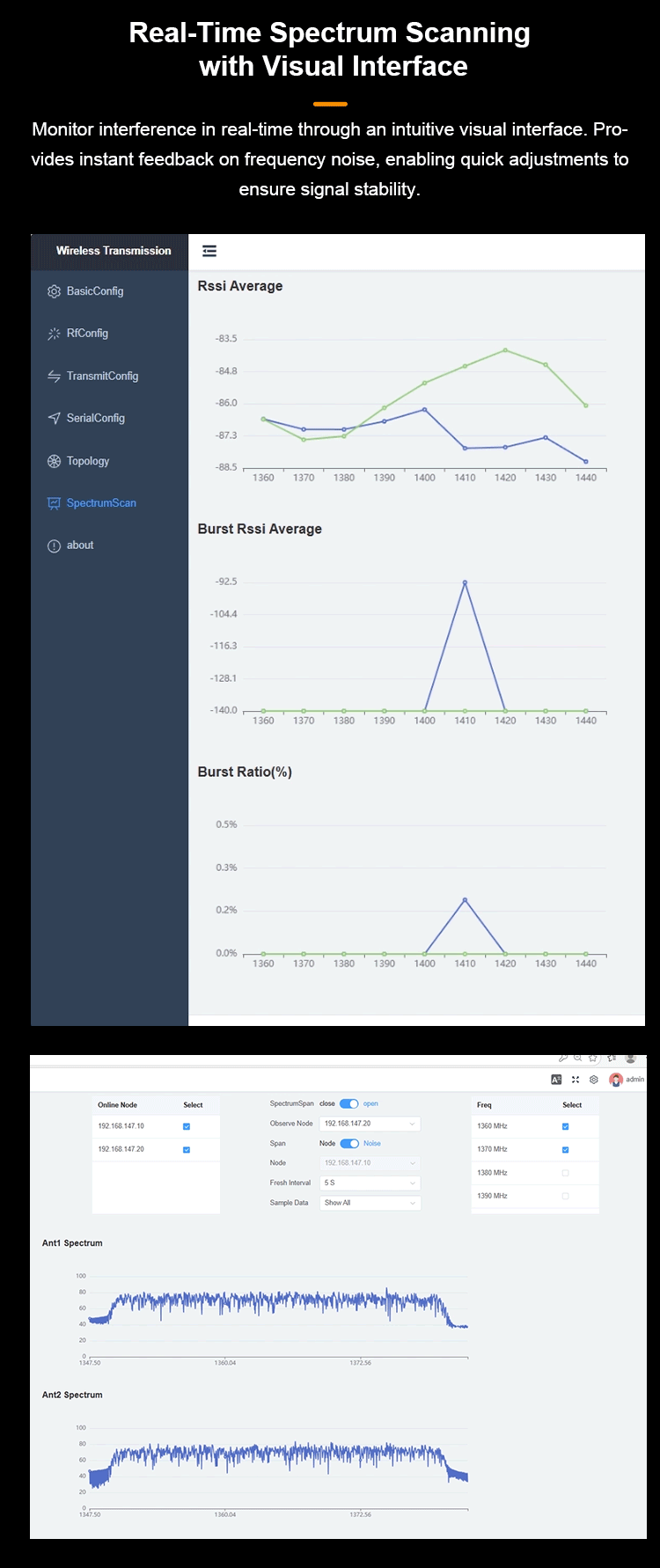

Featuring advanced frequency hopping (COFDM) technology, the system supports up to 16 preset sub-frequency channels and performs real-time spectrum scanning to automatically avoid interference, ensuring stable transmission even in the presence of signal jammers.

Built with a J30 interface and supporting Layer 2 transparent transmission, the VDLINK COFDM module enables seamless integration with various systems. It supports multiple communication modes, including TCP, UDP, serial-to-serial, and serial-to-IP, making it ideal for flexible deployment across industrial and UAV applications.

With its compact size, lightweight design, low latency, and low power consumption, this wireless data link delivers long-range, stable video and data transmission for demanding missions. It also supports multi-device co-frequency operation, allowing multiple units to work simultaneously without interference.

Perfect for point-to-point communication, UAV video transmission, power line inspection, hydrological monitoring, firefighting operations, and public safety communications, the VDLINK COFDM Series ensures secure, anti-jamming, and high-reliability connectivity in critical scenarios.

Your Purchase Includes:
1x Video Transmission Module Air Unit
1x Video Transmission Module Ground Unit
2x 10dBi Fiberglass Antennas
2x 2dBi Fiberglass Antennas
2x L-shaped Connectors
2x J30 Tail Cables
2x Feed Cables (A)
2x Tripods
2x Feed Cables(B)
1x Ethernet Cable (4-Pin to RJ45)
4x U-Bolt Clamps
1x RS232 to USB Cable
1x TTL to USB Module with Cable
