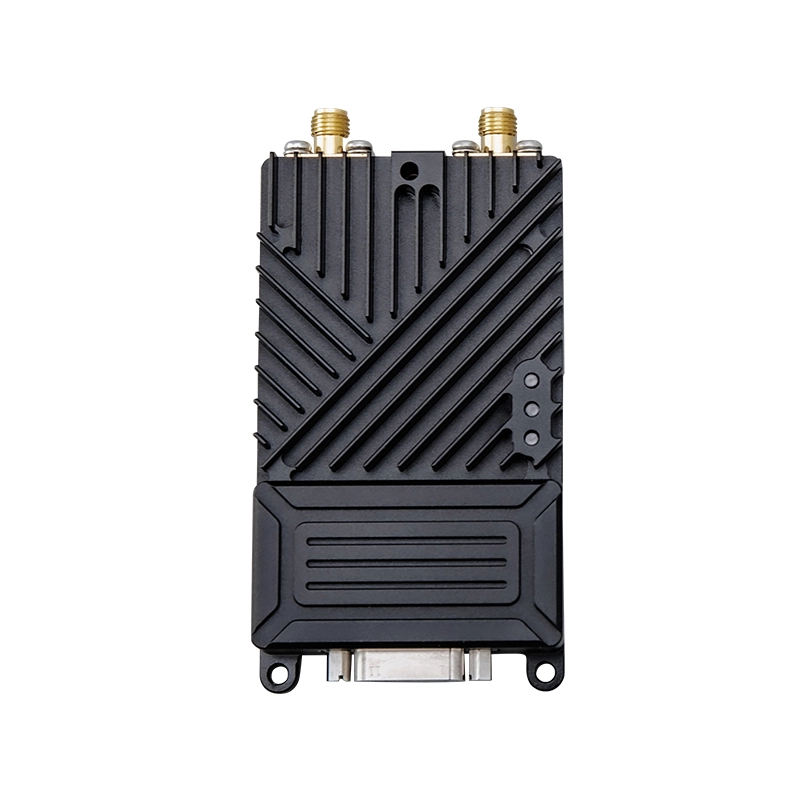

VDLINK MESH COFDM Video & Data Transmission System | 4 Nodes, 2 Hops, Customizable Network for UAV & Industrial Applications

The VDLINK COFDM Series Frequency-Hopping Anti-Interference Data Link is a high-performance wireless video and data transmission system designed for reliable communication in complex and interference-heavy environments. Operating Frequency: 1350–1450 MHz (Default)，Custom Frequency Range: 600 MHz – 2.7 GHz (Customizable).

The MESH version of the VDLINK COFDM data link system offers significant improvements in network scalability. With support for up to 256 nodes per group, this version enables large-scale deployment and ensures continuous communication across complex networks.

Max Nodes per Group: 256
Routing: Supports unlimited hops, customizable to specific needs
Default Setup: 4 nodes, 2 hops

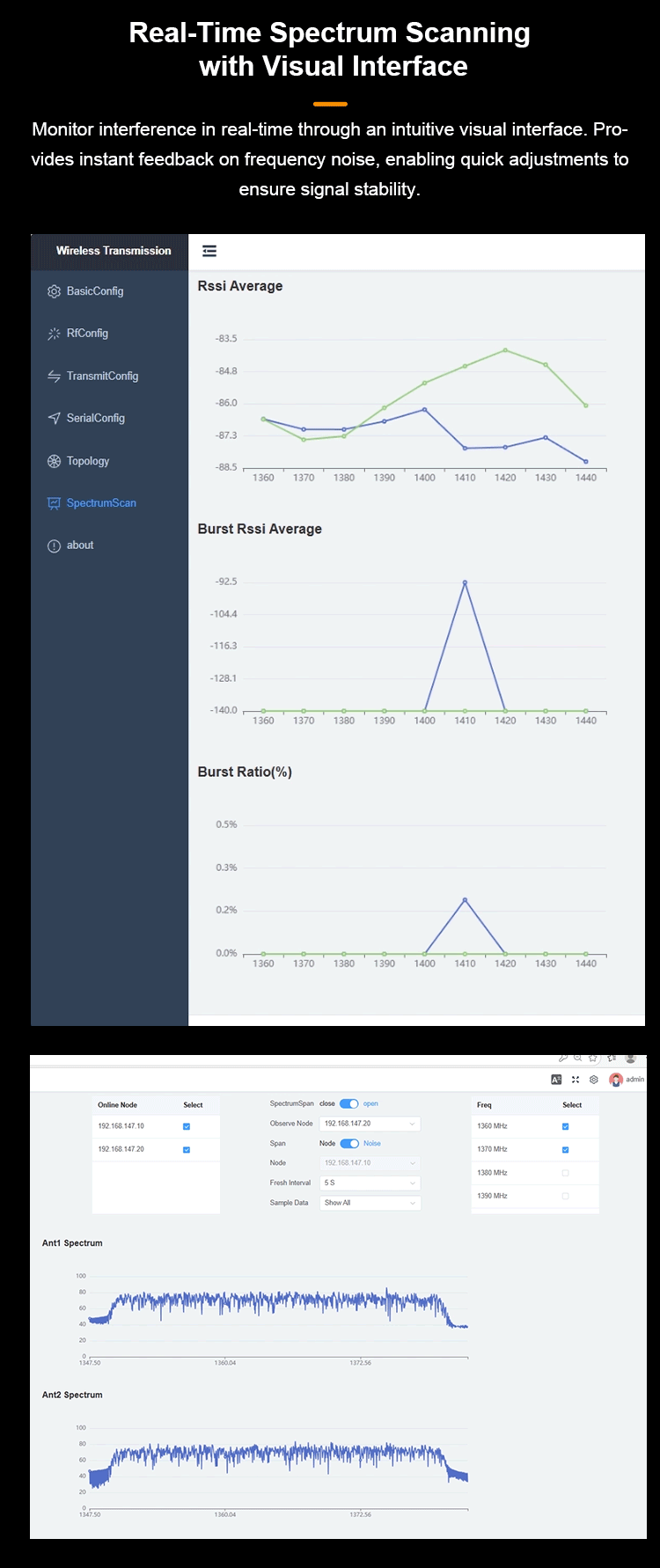

Featuring advanced frequency hopping (COFDM) technology, the system supports up to 16 preset sub-frequency channels and performs real-time spectrum scanning to automatically avoid interference, ensuring stable transmission even in the presence of signal jammers.

Built with a J30 interface and supporting Layer 2 transparent transmission, the VDLINK COFDM module enables seamless integration with various systems. It supports multiple communication modes, including TCP, UDP, serial-to-serial, and serial-to-IP, making it ideal for flexible deployment across industrial and UAV applications.

With its compact size, lightweight design, low latency, and low power consumption, this wireless data link delivers long-range, stable video and data transmission for demanding missions. It also supports multi-device co-frequency operation, allowing multiple units to work simultaneously without interference.

Perfect for point-to-point communication, UAV video transmission, power line inspection, hydrological monitoring, firefighting operations, and public safety communications, the VDLINK COFDM Series ensures secure, anti-jamming, and high-reliability connectivity in critical scenarios.

Whether you need to scale for industrial monitoring, UAV fleets, or public safety communications, the MESH version ensures seamless and reliable performance across vast, dynamic environments.

Your Purchase Includes:
1x Video Transmission Module
2x 2dBi Fiberglass Antennas
2x L-shaped Connectors
1x J30 Tail Cables
2x Feed Cables (for Small Fiberglass Antenna)
1x Ethernet Cable (4-Pin to RJ45)

Note:
When purchasing 2 or more modules, the package includes a ground unit.
Ground Unit Accessories Include:
1x Video Transmission Module
2x 10dBi Fiberglass Antennas
2x Feed Cables (for Large Fiberglass Antenna)
1x 1J30 Tail Cable
2x Tripods
4x U-Bolt Clamps
1x Ethernet Cable (4-Pin to RJ45)
1x RS232 to USB Cable
1x TTL to USB Module with Cable
