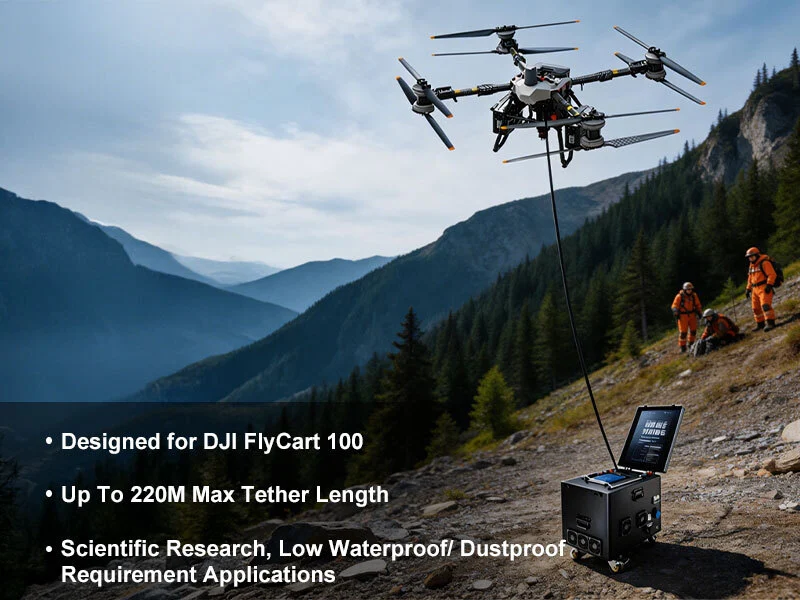

T-FC100 MINI Tethered Power Solution for DJI FlyCart 100 | 6+ Hours Continuous Power for Aerial Monitoring, Security, Nighttime Operations
Key Features：
T-FC100mini is a tethered power solution purpose-built for DJI FlyCart 100. By taking external AC 380V three-phase power (grid or generator compatible) through a mobile tether station and delivering regulated high-voltage DC transmission to the aircraft, it eliminates battery endurance constraints and enables long-duration, stable-hover, on-station operations. With up to 220 m tether length, the system is ideal for persistent missions such as scientific research, low waterproof and dustproof requirement applications.
NOTE: For grid power supply, the circuit breaker total power must exceed the airborne power module's rating. For generator use, generator output should be 25 kW.
KEY FEATURES
- ≥ 6 HOURS CONTINUOUS POWERED OPERATION for persistent hovering and on-station missions
- UP TO 220 M MAX TETHER LENGTH for flexible deployment
- HIGH-POWER OUTPUT: 30 kW rated tether station output | 20 kW rated onboard power
- STABLE POWER QUALITY: regulated onboard output with ±1% voltage fluctuation;≥96% conversion efficiency
- EFFICIENT CABLE HANDLING: adjustable reeling speed 0–2 m/s
- RAPID DEPLOYMENT: complete system deployment ≤10 min
- LIGHTWEIGHT SYSTEM DESIGN: total system weight ≤80 kg
- RELIABILITY & MULTI-LAYER PROTECTION: ≤ 1 failure per 100 flights; onboard module rated IP54 with under/over-voltage, over-current, short-circuit, and over-temperature protections
- HIGH-STRENGTH TETHER CABLE: Max. 30A working current; ≥ 300 kg breaking strength; ≥1000 reeling cycles; withstand voltage ≥3000 VDC (insulation ≥3500 VDC)
Your Purchase Includes:
1x 30 kW tether station (incl. tether cable)
1x Onboard power module (IP54, native-battery form factor)
1x 380V AC input cable
