T-FC100X Tethered Firefighting Drone Power & Water System for DJI FlyCart 100 | Long-Endurance Firefighting Drone Solution

Integrated Tethered Power & Water Supply for Aerial Firefighting

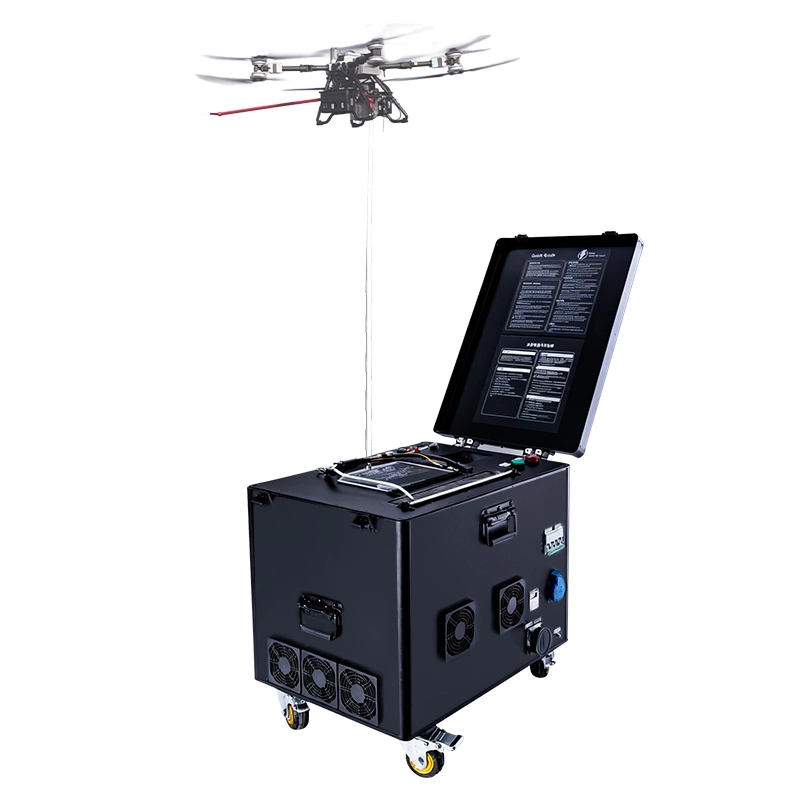

The T-FC100X Tethered Firefighting Power System is a high-performance tethered power and water-enabled solution purpose-built for the DJI FlyCart 100 drone, designed to support long-endurance aerial firefighting and emergency response missions. By combining continuous tethered power supply with high-pressure aerial water delivery, the FC100 overcomes battery limitations and enables sustained high-load operations in demanding fireground environments.

The system delivers over 6 hours of continuous flight power, supporting up to 30 kW full-load output and a maximum takeoff weight of 180 kg, making it ideal for high-rise firefighting and aerial fire suppression. A 1000V DC high-voltage transmission architecture minimizes power loss over long tethers, while the high-strength, fire-resistant cable offers ≥3000 N tensile strength and withstands temperatures up to 300°C.

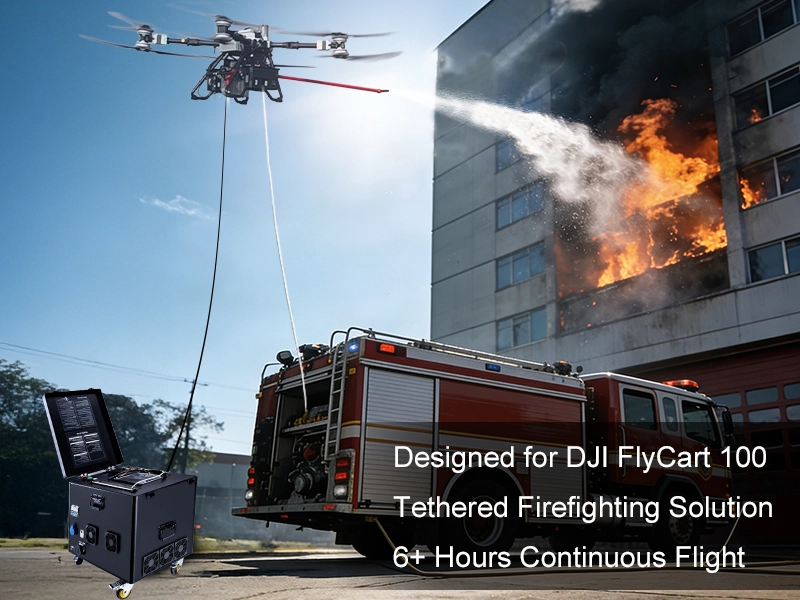

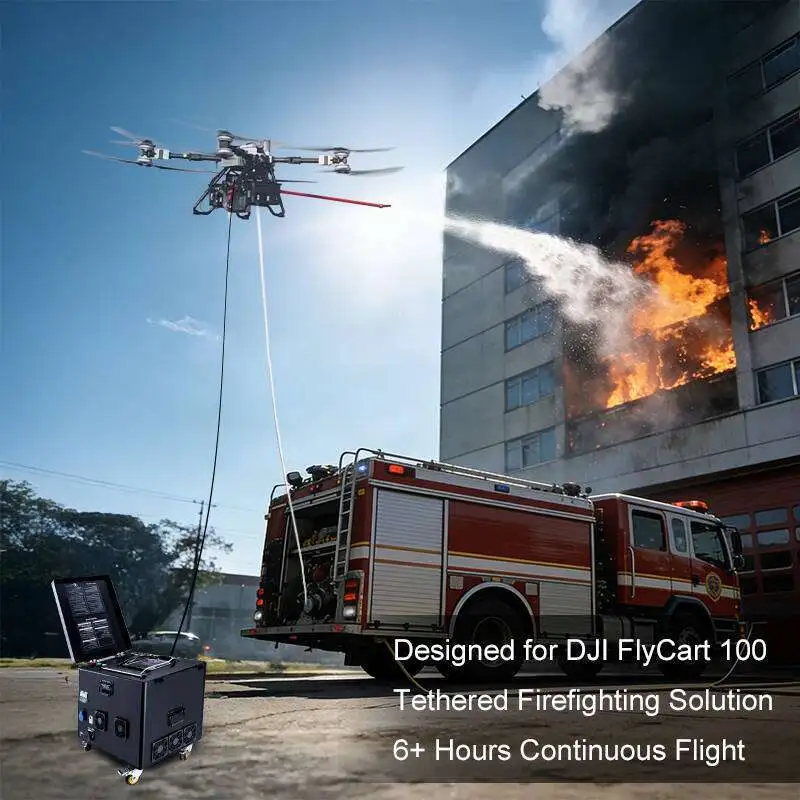

For firefighting applications, the T-FC100X supports 40 mm fire hoses, enabling continuous water spray at 60 m, and up to 100 m when coordinated with ladder fire trucks. With rapid deployment, modular design, and multi-layer safety protections, the T-FC100X is a reliable solution for urban firefighting, industrial fire response, and emergency aerial operations.

Key Features:
- Provides ≥6 hours of continuous single-flight power supply for the DJI FlyCart 100.
- Total tethered system weight ≤80 kg, including frame structure, tether cable, AC 380V power cable, and onboard bionic power module, enabling rapid deployment.
- Onboard power module supports 30 kW continuous full-load output, enabling a maximum takeoff weight (MTOW) of up to 180 kg（however, the actual MTOW must not exceed the FC100 drone's rated maximum takeoff weight） during long-duration hovering.
- Power conversion efficiency ≥96%, with voltage stability deviation controlled within ±1%.
- High-strength tether cable with ≥3000 N tensile strength, high-temperature resistance ≥300°C for firefighting environments, and IP67-rated waterproof onboard power core.
- System failure rate ≤1 per 100 flights, with built-in power-loss protection.
- Mobile ground tether station supports up to 100 m tether length, 380V AC industrial power input, and 40 kW rated output, ensuring flexibility and field mobility.
- Complete system deployment time ≤10 minutes, optimized for emergency response scenarios.

Note:
- Water is supplied from the fire truck. A connector is required to connect the truck hose to the aircraft spray gun. Fire hose standards vary by country—please contact sales to specify the correct connector before ordering.
- For grid power supply, the circuit breaker total power must exceed the airborne power module's rating. For generator use, generator output should be 37.5–40 kW.

Your Purchase Includes:
1x Tethered Power Station (including tether cable)
1x Onboard Power Module (bionic battery design)
1x 380V AC Power Cable
1x Aerial Firefighting Hose kit
