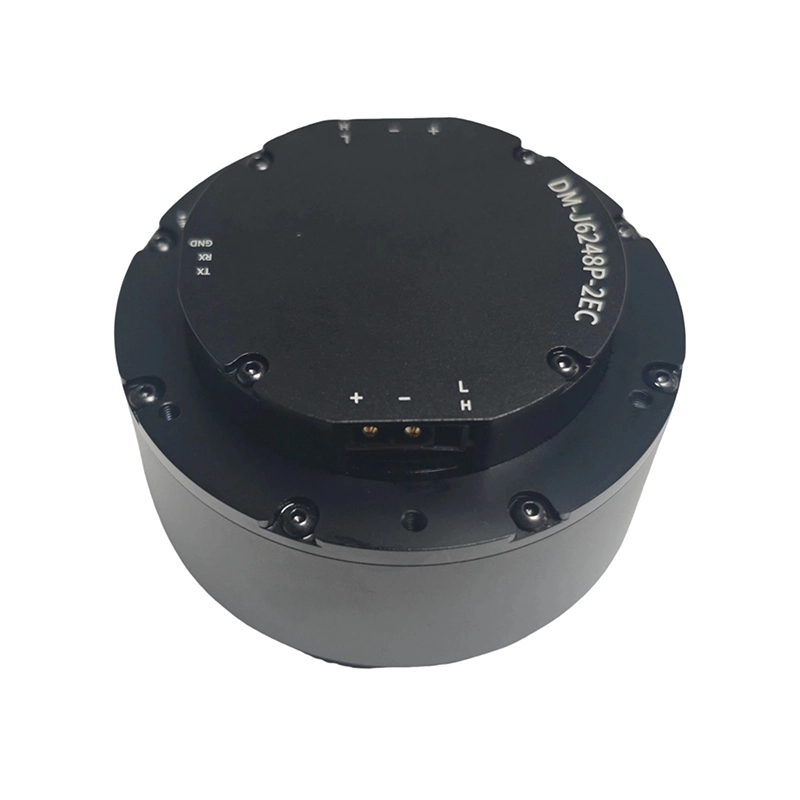

DM-J6248P-2EC MIT-Driven Brushless Servo Joint Motor for Robotic Arms
The DAMIAO DM-J6248P-2EC is an all-in-one brushless servo joint for robotic arms, integrating the motor and driver in a compact module. Dual encoders provide single-turn absolute output-shaft positioning, while CAN FD (up to 5 Mbps) with PC visual tuning and CAN parameter read/write enables precise control with rich telemetry and built-in protections.
Key Features
Integrated motor + driver design for high integration and easy wiring
Dual encoders, absolute output-shaft (single-turn)—no homing, position retained after power cycles
CAN FD up to 5 Mbps, PC visual tuning, CAN parameter read/write
Telemetry & protection: speed/position/torque/temperature feedback, dual-temperature protection, CAN firmware upgrade
Your Purchase Includes
1x Motor (with driver)
1x Power & CAN cable — XT30(2+2)-F, single-ended, 100 mm
1x Tuning serial cable — GH1.25 3-pin (reverse), 300 mm
