Agility A1: An OpenArm-Based Robotic Arm Advancing the Future of Physical AI
In the rapidly evolving world of humanoid robotics, open-source innovation is redefining what’s possible. One of the most exciting outcomes of this movement is Agility A1, a next-generation robotic arm built on the OpenArm platform — a fully open-source humanoid robot arm designed for physical AI research and deployment in contact-rich environments.
Agility A1 inherits OpenArm’s vision of making high-performance robotic systems accessible to the global research community. By combining human-level dexterity with transparent, modifiable hardware and software, it opens new opportunities for innovation in motion control, manipulation, and human-robot interaction.
Precision Engineering for Human-Like Motion
Each Agility A1 arm provides 7 degrees of freedom, allowing for lifelike flexibility and precise movement. With a 633 mm reach, 5.5 kg weight, and 6 kg peak payload, it balances strength, responsiveness, and efficiency.
At its core, the system uses 1 kHz high-speed CAN-FD communication, ensuring smooth, precise control even in high-dynamic operations. This enables the arm to perform both delicate manipulations and high-contact interactions with equal accuracy.
Advanced Motor System Inspired by OpenArm Design

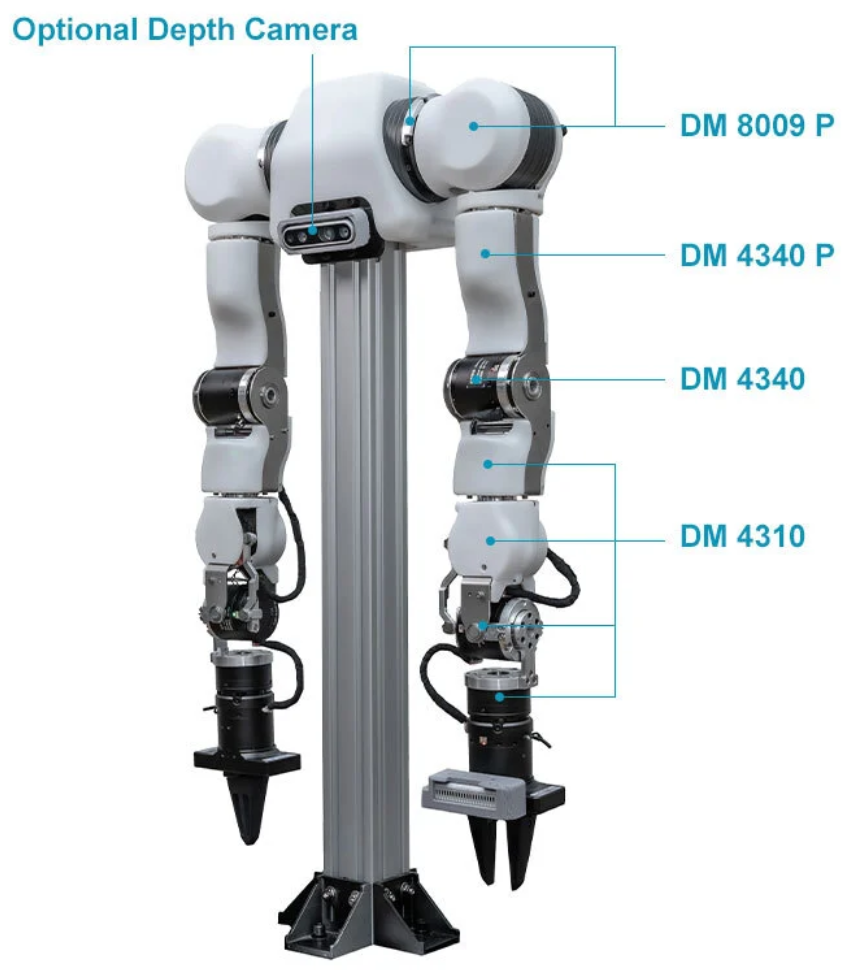

Built upon OpenArm’s modular open-source architecture, Agility A1 features a robust and efficient motor system integrating DAMIAO 43-series and 8009P motors. Each joint — from the shoulder to the end-effector — is optimized to deliver the ideal combination of torque, speed, and smoothness.
The use of cross-roller bearings enhances rigidity and precision in single-side-supported sections, while the DAMIAO 4340 series motors ensure high payload capacity in a compact and elegant design. This thoughtful integration allows Agility A1 to maintain stability, accuracy, and mechanical efficiency during complex movements.
Fully Open-Source for Research and Development
Continuing the OpenArm philosophy of openness and collaboration, Agility A1 offers unrestricted access to:
-
Complete CAD models
-
Firmware and control code
-
Simulation tools
This makes it a powerful platform for rapid prototyping, customization, and software experimentation. Researchers can easily modify mechanical components, test new control algorithms, or integrate custom sensors — accelerating progress in robot learning, dexterous manipulation, and AI-driven control.
Safe, Compliant, and Interactive
Agility A1 emphasizes safe and intuitive human-robot interaction, a hallmark of OpenArm’s design principles. The arm supports:
-
Real-time gravity compensation for effortless teleoperation
-
Compliant, backdrivable joints for safe physical contact
-
Smooth remote control with immediate feedback
These features make Agility A1 ideal for contact-intensive environments, including collaborative research, assistive robotics, and physical AI experimentation.
Advancing the OpenArm Ecosystem
As part of the broader OpenArm ecosystem, Agility A1 represents the next evolution of open-source humanoid robotics. It demonstrates how accessible, high-performance platforms can drive forward the development of intelligent, human-level machines.
By empowering global researchers and developers to collaborate and build upon shared knowledge, Agility A1 and OpenArm together embody a new era of transparency, innovation, and collective progress in robotics.
